The Olympus 35 RC

The Olympus 35 RC is somehow in between of my Olympus Trip 35 and the Yashica 35 Electro 35 GT. Small and light enough to carry around every day, but equipped with a rangefinder and a sharp Zuiko lens. I bought it for a reasonable price at Foto Braune in Berlin. (After buying my Yashica, I promised to my wife not to buy another camera for me in the next half year, so when I saw this gem I bought it as a gift to her. Promise kept 😉 ).

About the camera: The Olympus 35 RC was the smallest camera of the Olympus 35 rangefinder family and built from 1970 – 1979. It is said, that it’s the smallest Rangefinder with full manual control. Although the camera is smaller than the Olympus Trip 35, it is slightly heavier. The camera has everything a camera needs: a sharp five element ƒ 2.8/42mm lens, a built in light meter, an aperture automatic, hot shoe, self timer, tripod mount and a connector for a cable release. In case of low battery, the camera can be still used in full manual mode with an external light meter or by following the Sunny 16 rule.

Taking pictures: Load your film and set the film speed (25 – 800 ISO) with the dial on the lens. (Yes, this is a unusual place for this). In automatic mode “A”, set your desired shutter speed ( 1/15, 1/30, 1/60, 1/125, 1/250 and 1/500) with the dial on top of the camera and focus using the bright rangefinder. The aperture (ƒ 2.8 – ƒ 22) is automatically set by the camera. The chosen speed and the set ƒ stop are displayed in the viewfinder. In case of over- or underexposure, the camera blocks the shutter. In backlight situations, you have to “cheat” the camera by setting a lower film speed, such as 100 instead of 200 for example. But unlike the Trip 35, you can also “lock” the light meter on the darker subject by pushing the shutter release half way.
In low light situation attach a flash, select the flash mode, and set the proper guide number. The camera’s flash automatic takes care of the rest based on the distance to the object. Magic.
In manual mode, set ƒ stop and shutter speed as you wish, including “B”. To safe battery life, set it to the “Off” position when not in use.

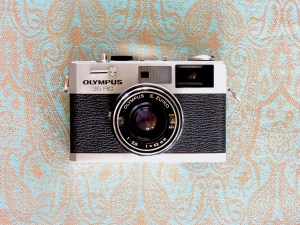

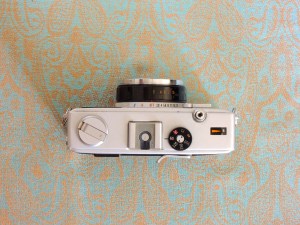

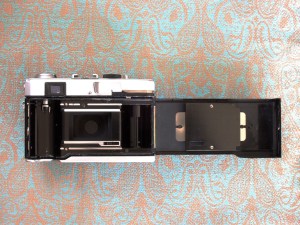

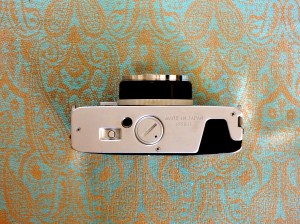

Olympus 35 RC front Olympus 35 RC top Olympus 35 RC bottom Olympus 35 RC back Olympus 35 RC battery adapter imm017_17 imm016_14A imm021_19A imm026_24A imm027_25A imm029_27A imm036_34A

Brand Olympus
Camera Olympus 35 RC
Year built ?, built from 1970 to 1979
Serial number 455641
Lens E. Zuiko 1:2.8 / 42 mm
Shutter Leaf shutter
Film format 35mm
Special features Flashmatic System, fully manual compact rangefinder
Accessories
Manufactured by Olympus Optical Co. Ltd., Tokio, Japan
Date of purchase 05.12.2013
Price
Place of purchase Foto Braune, Berlin

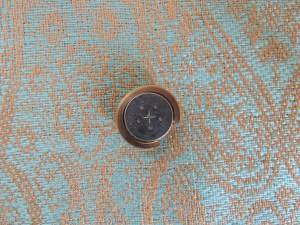

Tips & Tricks: If you want to use the built in light meter and the automatic aperture setting, you will need a battery. As the original mercury batteries are not produced any more, I bought cheap 675 zinc air batteries which are usually used in hearing aids. As those are smaller then the old PX 625 batteries, I use a brass ring to add the needed millimeters in diameter.

Film purchase & processing: The camera can use any 35 mm film from 25 to 800 ISO, films can be developed everywhere.

Useful Links:
http://www.star.ucl.ac.uk/~rwesson/esif/om-sif/camhistory/manuals/35rc.pdf (Manual)
http://www.ph.utexas.edu/~yue/misc/35RC.html
http://thecameracollection.blogspot.de/2013/05/olympus-35rc.html
http://mattsclassiccameras.com/olympus_35rc.html

Pictures:
One Olympus 35 RC group on flickr
Another Flickr group
My pictures on Flickr

Die Olympus 35 RC

Advertisements

7 thoughts on “The Olympus 35 RC

  1. Nice. The 35RC has been on my short list for years. I bought one cheap this summer but its light meter was dead. 😦 Try, try again. You did nice work with your 35RC.

  2. You can also “lock” the light meter on the darker subject by pushing the shutter release half way with the Trip 35.

      1. It’s simple to see, check the diaphragm opening while holding the button half-pressed.
